Radial Glass Sealed NTC Thermistor MF57 Series

Name: Radial Glass Sealed NTC Thermistor MF57 Series
Brand: XIXITRONICS
Price: 1 USD

Wholesale Radial Glass Sealed NTC Thermistor MF57 Series from china suppliers

Brand Name : XIXITRONICS

Model Number : MF57 series

Certification : UL , RoHS , REACH

Place of Origin : China

MOQ : 500 pcs

Payment Terms : T/T

Supply Ability : 80 Million Pieces Per Year

Delivery Time : 2-5 work days

Packaging Details : In Bulk , Plastic Bag Vacuum Packing

R 25℃ : 1KΩ-2.3 MΩ

B Value : 3200-4200K

R Tolerance : 0.5% , 1% , 2% , 3% , 5%

B Tolerance : 0.5% , 1% , 2% , 3%

Contact Now

Glass Bead Thermistors MF57 series

Features:
■ Glass-sealed bead provides High-level heat resistance and high environmental Stability
■ Proven long term Reliability with low power requirement
■ Smaller size , High Sensitivity and Faster thermal response than conventional thermistors

Applications:
■ HVAC equipment, water heaters, microwave ovens, home appliances
■ Automotive (water, intake air, ambient, battery, motor and fuel) , hybrid vehicles, fuel cell vehicles, automotive electronics
■ Assembly into various probes of Temperature sensors
■ General Instrumentation applications

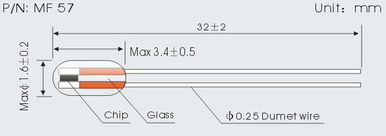

Dimensions:

Product specification:

Specification	R25℃ (KΩ)	B25/50℃ (K)	Disspation Constant (mW/℃)	Time Constant (S)	Operation Temperature (℃)
XXMF57-310-102□	1	3200	0.8 - 1.2 typical in still air at 25℃	6 - 12 typical in still air	-25～250
XXMF57-338/350-202□	2	3380/3500
XXMF57-327/338-502□	5	3270/3380/3470
XXMF57-327/338-103□	10	3270/3380
XXMF57-347/395-103□	10	3470/3950
XXMF57-395-203□	20	3950
XXMF57-395/399-473□	47	3950/3990
XXMF57-395/399/400-503□	50	3950/3990/4000
XXMF57-395/405/420-104□	100	3950/4050/4200
XXMF57-420/425-204□	200	4200/4250
XXMF57-425/428-474□	470	4250/4280
XXMF57-440-504□	500	4400
XXMF57-445/453-145□	1400	4450/4530
